FOCUS DUAL

EUNSUNG
Fractional Multi Needle RF & HIFU Multi System


HOW DOES IT WORK?

Focus Dual provides proven solution for Facial treatment from advanced technology – combination of HIFU and Fractional micro needle RF. HIFU is an efficient method for face lifting, Multi needle RF can be used from acne scar treatment. Especially, the delicate setting adjustment will give the operators high satisfaction by convenient use and significant clinical effects.

Generic Background HD (46).jpg
Focus .png

TECHNOLOGY

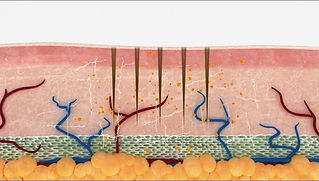

FRACTIONAL MICRO NEEDLE RF

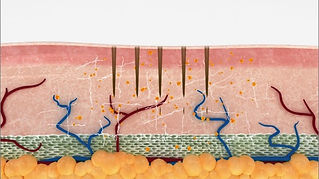

When micro-needle is injected into the skin, on the same time, Bi-polar RF will be also effects to the skin. The RF energy will be directly affected to the dermis and help regeneration of collagen and elastin.

Also, needling can improve acne and pores. By adjusting proper needling depth, it can solve diverse skin problems.

FOR FACE

[4.5mm] SMAS
The SMAS layer is located in the depth of 4.5mm from the facial surface and means a layer of tissue that covers, surrounds and attaches to the deeper tissues and structures of the face. When this layer is loosened, the facial muscle gets sagged and it makes you look older. By delivering Energy to the muscle fascia and creating focal coagulation points Focus Dual tightens the muscle fascia and gets excellent lifting results..



[3.0mm]  Lower dermis
By revitalizing aged collagen and elastin in the depth of 3.0mm it guarantees various treatment effects like wrinkle reduction, skin tightening, and skin tone improvement.



[1.5mm] Upper dermis
By delivering HIFU energy to the epidermis layer, you can get various treatment effects like wrinkle reduction around the areas of the eyes and the mouth where the skin is thin, and skin tightening.

FOR BODY

[13mm] Subcutaneous adipose tissue
Fat cells are destroyed above 56 degrees when Energy is given to the fat layers located in the depth of 13mm with the specially designed cartridge for the body. Destroyed fat cells are discharged by macrophagocyte. It can be applied to various areas around the waist and the thighs

Orange Element (1)_edited.png

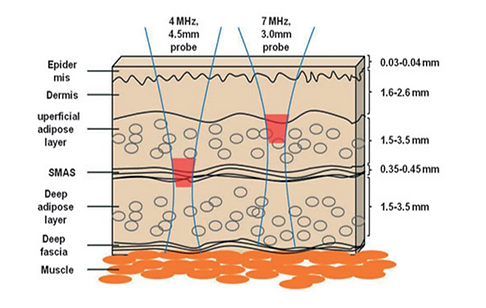

CARTRIDGE DEPTH

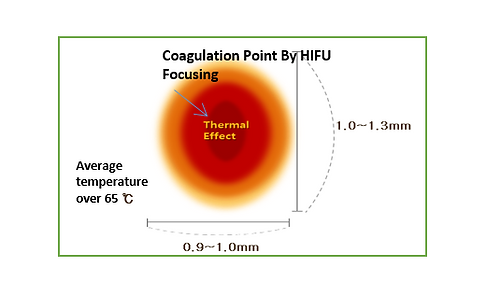

COAGULATION ZONE & TEMPERATURE

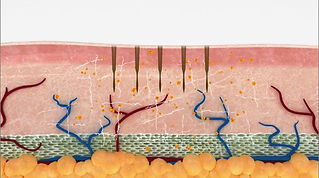

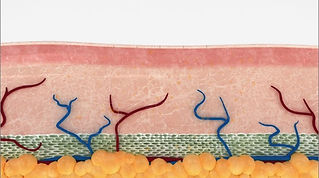

WOUND-HEALING PROCESS

STEP 1


A. According to the wound-healing process

STEP 2


B. Fibroblast activity is increased

STEP 3


C. Fibers are rearranged and significant collagens is occurs

STEP 4


D. Collagen and elastin cells are gathered

STEP 5


E. And remodeled around the needle insertion areas

ADVANTAGES

A

LIFTING AND TIGHTENING AT THE SAME TIME ON ONE DEVICE

B

MINIMAL PAIN USING Ф 0.16 THIN RF NEEDLE

C

REDUCED EPIDERMAL DAMAGE AND CAN BE PERFORMED WITHOUT DOWNTIME

D

ENABLES CONVERSION OF HANDPIECE BUTTONS AND FOOTSWITCHES

E

VACUUM SUCTION FUNCTION ENABLES PRECISE DEPTH OPERATION AND CAN BE PERFORMED AROUND THE EYES.

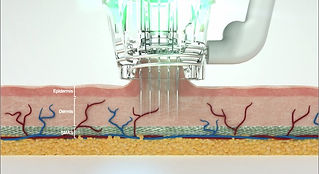

MICRO RF NEEDLE


A

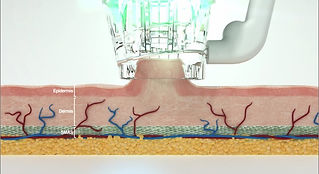

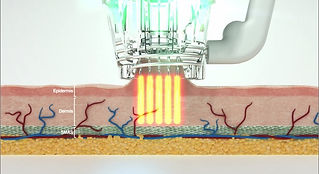

A. Micro needle bi-polar RF acts directly on the dermal layer of skin to help regenerate collagen and elastin.


B

B. Needling, a physical invasion procedure, has the effect of improving acne scars.


C

C. Fine penetration depth control function through Vacuum-based absorption(Skin-up) can be customized to fit a variety of skin conditions.

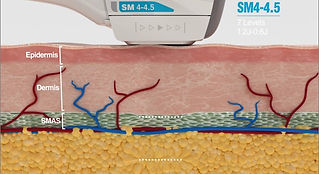

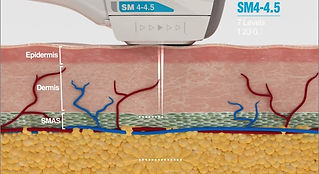

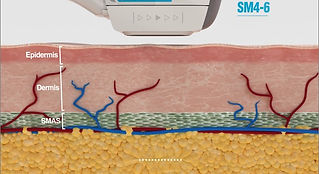

HIFU


A

A. Using a non-invasive technique to replace the traditional lift operation.


B

B. To tighten the loose skin, improve sagging and other aging phenomenon.


C

C. With a special conveyor, penetrating conduction high energy focusing.

DEVICE SPECIFICATIONS


A . Fractional micro needle RF

  • Able to select either foot or hand piece switch.

  • Safer treatment by applying vacuum function.

  • Hygienic treatment for using disposable multi needle.

  • Depth : 0.5~3.5mm

  • RF level : 1~10 level

  • RF on time is able to control

  • Suction : 0~3 level

  •

B . HIFU

  • Depth : 1.5 / 3.0 / 4.5 / 13 mm

  • Number of cartridge: 5

  • Easy cartridge replacement

  • Comfortable 3 buttons design



C . Touch Screen

  • 10.2 inch touchscreen

  • User friendly UI settings

  •



D . Trolley

COMPONENTS
