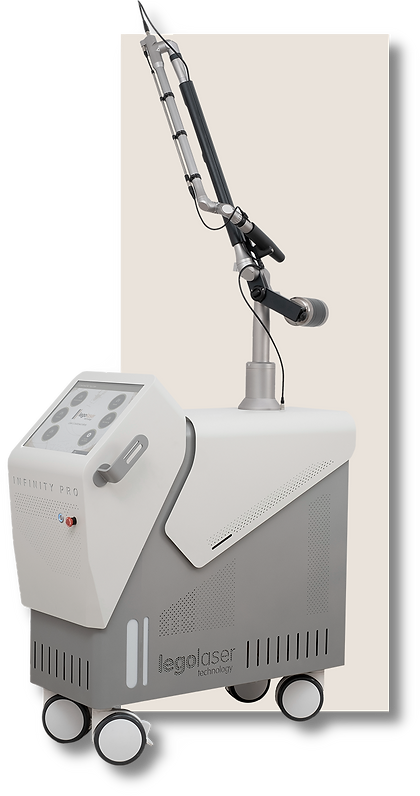

Q-SWITCHED INFINITY PRO

LEGO LASER
(ND YAG 532 nm -1064nm)
​Non Surgical Strike Against Pigmentation

ABOUT

Q-Switched Nd: Yag Infinity Pro dual wavelength (1064 nm and 532 nm) is a Q-switched laser mainly used for pigment treatments as well as tattoo removal, peeling or bleaching among others, featured by providing high energy in a very short time (6 nanoseconds).


Q-S Infinity Pro emits 1064 nm wavelength (optimal on epidermis), which thanks to the glass of titanyl potassium diphosphate (KTP) becomes to 532 nm wavelength (effective on dermis). This frequency doubler allows changing wavelength from 1064 nm (infrared) to wavelength of 532 nm (green) giving to the QS-Nd: YAG / KTP two wavelengths into one compact system.

Generic Background HD (46).jpg
Orange Element (3)_edited_edited.png

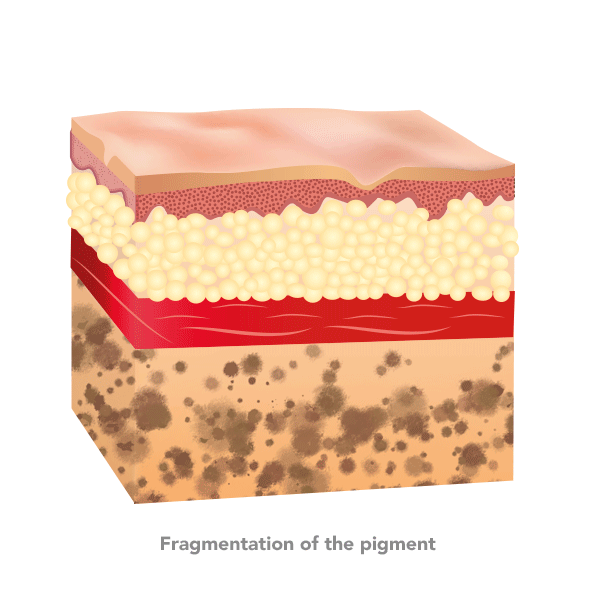

This high energy in such a short space of time produces a photoacoustic effect with mechanical shock on tissues focused to fragment the pigment. The pigment is removed by three possible mechanisms when the Q-switched laser is applied on the skin:

  • Fragmentation of the pigment in small particles (less than 6 microns) to facilitate elimination through phagocytosis via lymphatics.

  • Chemical alteration of the pigment it less visible to the human eye.

  • Pigment can be decreased to some extent by the trans epidermal elimination.

infi pro.png

​BEAM FEATURES – OPT TECHNOLOGY

Q-Switched Infinity Pro provides a flat-top beam with an intensity profile, offering a square and stable pulse in all pulses delivered energy. This flat top beam is translated into more effective treatments, markedly shortening the number of sessions. Flat top beam is in contrast to Gaussian beams, where the intensity smoothly decays from its maximum on the beam axis to zero.



The technology OPT (Optimal Pulse Technology) offers a square and stable pulse in all pulses delivered energy.

Orange Element (1).png

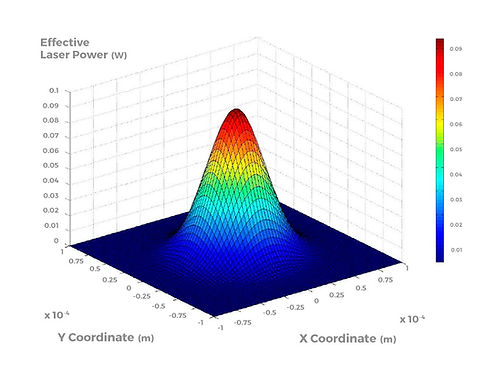

GAUSSIAN BEAM MODE


PERFECT TOP-HAT MODE


MAIN FEATURES

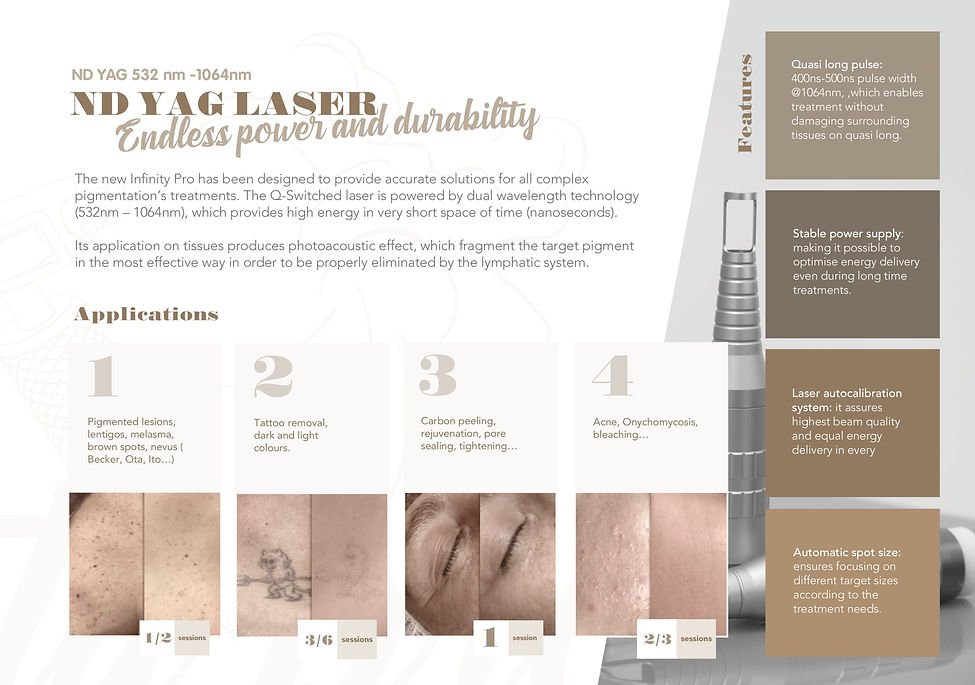

APPLICATIONS

1

Pigmented lesions, lentigos, melasma, brown spots, nevus ( Becker, Ota, Ito…)


2

Tattoo removal, dark and light colours.


3

Carbon peeling, rejuvenation, pore sealing, tightening…


4

Acne, Onychomycosis, bleaching…

Orange Element (1).png

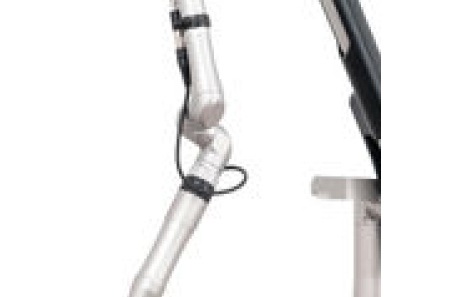

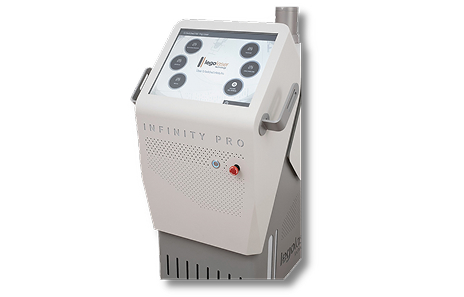

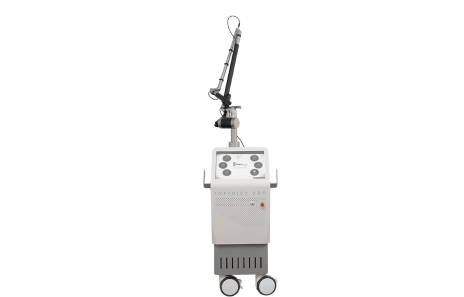

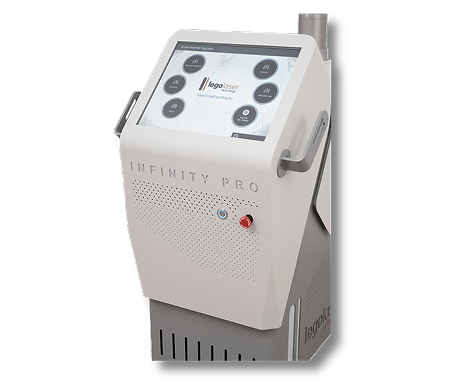

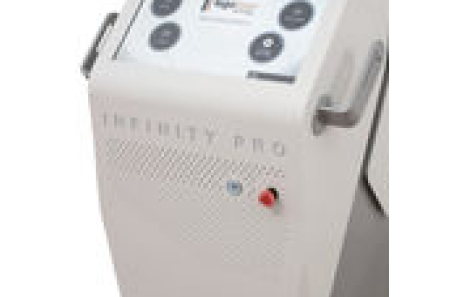

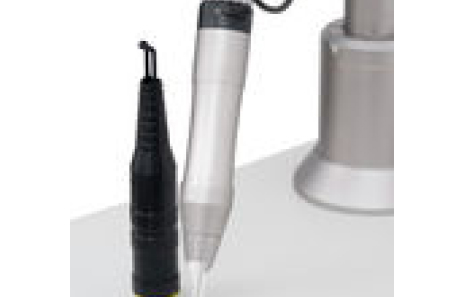

PRODUCT SHOWCASE
